Product Details:
|
| Condition: | New | Type: | Filling Machine |
|---|---|---|---|
| Machinery Capacity: | Other | Applicable Industries: | Hotels, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops |
| Showroom Location: | None | Application: | Food, Beverage, Commodity, Chemical, Medical |
| Packaging Type: | CANS, Bottles, Barrel | Packaging Material: | Wood |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 220v/380v | Dimension(L*W*H): | 260*90*150 Cm |
| Weight: | 300 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Filling Material: | Other, Liquid |
| Filling Accuracy: | <±1% | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Not Available | Warranty Of Core Components: | 1 Year |
| Core Components: | Other | Product Name: | Automatic Paste Liquid Filling Machine |
| Filling Range: | 10-100ml,25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | Hopper Capacity: | 80L |
| Air Pressure: | 0.4-0.6Mpa | Contact Material: | Stainless Steel |
| Suit: | Bottle,glass,bowl | Filling Precision: | Less Than 1% |
| After Warranty Service: | Online Support | After-sales Service Provided: | Video Technical Support,Field Installation, Commissioning And Training |
| Marketing Type: | New Product 2019 | Port: | NINGBO Or SHANGHAI |

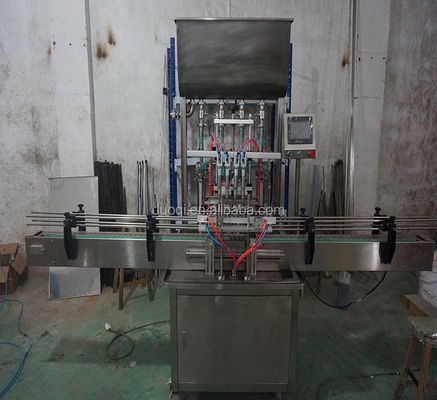

DUOQI GT4T-4G pneumatic 4 filling nozzles Automatic viscous paste and liquid filling machine
Filling samples:
| Powe supply | 220V 50HZ |
| Air pressure | 0.6-0.8mpa |
| Filling speed | 8-40 bottles/min |
| Power | 1000W |
| Filling heads | 4 heads |
| Filling accuracy | ≤±1% |
| Filling volumes range | 10-100ml,25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
| Machine size | 260*90*150 cm |
Description:
GT4T-4G is designed on the basis of this companys series products with extra functions increased. The product is simple and convenient in operation, error correction, machine cleaning and maintenance. Widely used for filling various kinds of highly viscous fluid in the industries of daily chemicals, foodstuffs, pharmaceutics and oil.

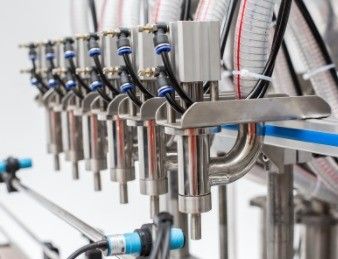

1.With two synchronous filling heads, quick and accurate filling possible
2.With Germany FESTO and Taiwans AirTac,SHAKO pneumatic elements and Taiwans electrical control parts adopted, its performance is stable.
3.The cylinders and pistons are made of 316L stainless steel and lined with PTFE, conforming to GMP.

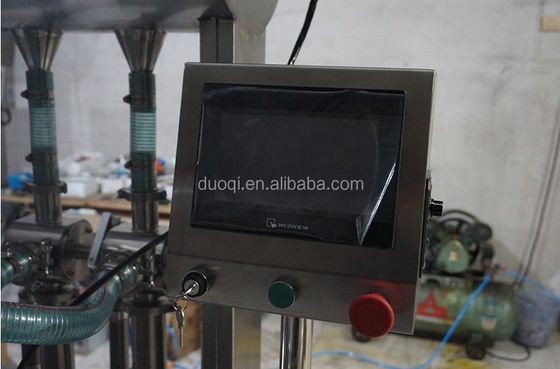

4.Quality guaranteed by employing Korean AUTONICS photoelectric eyes, Taiwans PLC, touchable screen and frequency inverter, and Schneider Electric Co. electrical elements.
5.Compact design, attractive appearance, convenient installational and filling adjustment, no missed filling and accurate filling dosage with a counter provided.
6.Closure head preventing leakage and wire-drawing, filling elevating system preventing high froths, bottle top positioning system and liquid level control system provided.
