DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper

Certification
China Wenzhou Xingye Machinery Equipment Co., Ltd. certification
I'm Online Chat Now

DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper

DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper
DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper

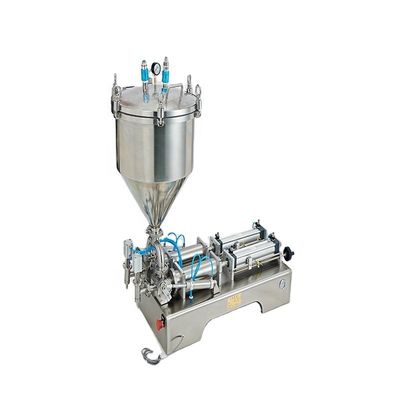

Large Image :  DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DUOQI
Certification: CE
Payment & Shipping Terms:
Price: $930.00/units 1-9 units
Packaging Details: Standard export strong Carton packing
Supply Ability: 100 Unit/Units per Month

DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper

Description
Condition: New Type: Filling Machine
Machinery Capacity: 200BPH Applicable Industries: Hotels, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops
Showroom Location: None Application: Food, Beverage, Commodity, Chemical, Medical
Packaging Type: CANS, Bottles, Stand-up Pouch, Bags Packaging Material: Plastic, Paper, Wood
Automatic Grade: Semi-automatic Driven Type: Electric
Voltage: 110V/220V Dimension(L*W*H): 1330*500*450mm
Weight: 65KG Warranty: 1 Year
Key Selling Points: High-accuracy Filling Material: Milk, Water, Oil, Juice
Filling Accuracy: ≤±1% Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Gear, Bearing Product Name: Thick Paste And Liquid Dual Use Filling Machine
Filling Range: 5-100ml,10-200ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml Filling Speed: According To The Material Characteristics And Filling Volume Set
Hopper Capacity: 40L Air Pressure: 0.4-0.6Mpa
Keywords: Paste Fillng Machine Contact Part: Stainless Steel 304
Control: Penumatic And Electric Hopper: With Air Pressure
After Warranty Service: Online Support Local Service Location: None
After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service Marketing Type: New Product 2020
Port: Ningbo Or Shanghai

DUOQI G1WGD   thick paste  pneumatic filling machine with air pressure  hopper



Model

G1WGD-Air pressure with single head

Power

100W

Powersupply

110/220v 50/60hz

Air Pressure

0.4-0.6Mpa

Machine Material

SS304 & PTFE O-Rings

Filling Volume Range

5-100ml,10-200ml,50-500ml,100-1000ml,500-2500ml,1000-5000ml

Filling Speed

0-50Bottles/min

Filling accuracy

≤±1%

Machine Size

1330*500*450mmmm

(Reference)

Machine Weight

85Kg

Description:

1.The machine is Electrical integration.It need work with power and air compressor.

2.It have different filling range for the viscosity paste.Like honey,cream,gel,etc.It widely suit for  pharmaceutical, chemical, food, cosmetics and other industries.

3.The machine adopt the stainless steel 304.The Filling head adopts anti-leakage.Filling volume and filling speed can be adjusted, and the precision is high.

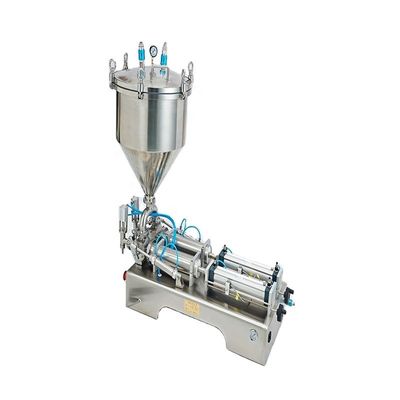

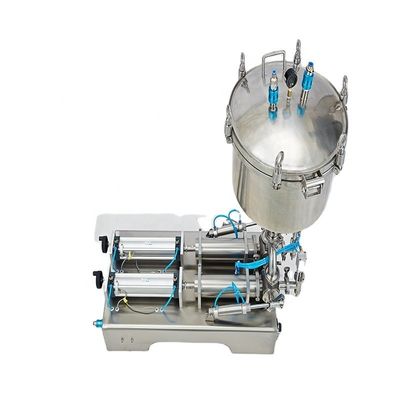

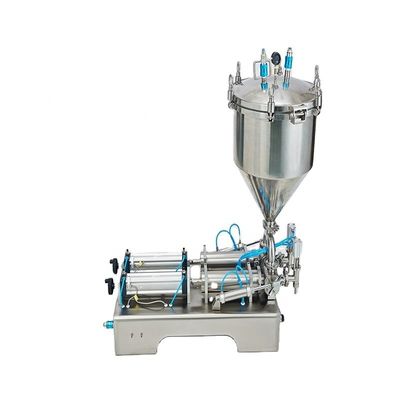

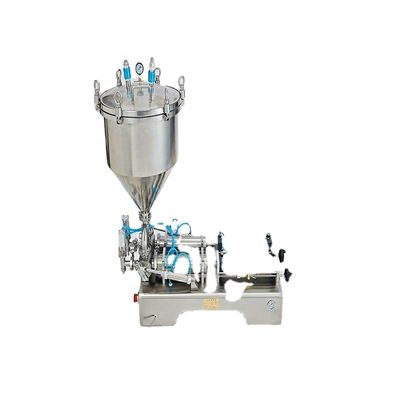

DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper 0DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper 1DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper 2



DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper 3DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper 4 DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper 5DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper 6DUOQI G1WGD Pneumatic Filling Machine with Oil Filling Material and Air Pressure Hopper 7

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.



Q2: Can you send products  to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.



Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.



Q4: What's your payment terms ?

A4:Offline, L/C ,T/T ,Western Union



Q5: How can I place the order?

A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay  balance. Finally we will ship the Goods.



Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
