Product Details:
Place of Origin: Zhejiang, China
Brand Name: DUOQI
Payment & Shipping Terms:
Price: $3,500.00/sets >=1 sets
Packaging Details: Standard wooden case packing

Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V

Description
Condition: New Type: Filling Machine
Machinery Capacity: Other Applicable Industries: Hotels, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops
Showroom Location: None Application: Food, Beverage, Commodity, Medical
Packaging Type: CANS, Bottles, Barrel Packaging Material: Wood
Automatic Grade: Automatic Driven Type: Electric
Voltage: 220v/380v Dimension(L*W*H): 210*86*146cm
Weight: 320 KG Warranty: 1 Year
Key Selling Points: High-accuracy Filling Material: Milk, Water, Oil, Juice
Filling Accuracy: ≤±1% Machinery Test Report: Not Available
Video Outgoing-inspection: Not Available Warranty Of Core Components: 1 Year
Core Components: Motor, Pump After Warranty Service: Video Technical Support,Online Support
After-sales Service Provided: Online Support,Video Technical Support,Field Installation Product Name: Automatic Liquid Filling Machine
Filling Range: 10-100ml,25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml Filling Speed: 300-500BPH
Hopper Capacity: 80L Air Pressure: 0.4-0.6Mpa
Contact Material: Stainless Steel 304 Suit: Bottle,glass,bowl
Marketing Type: Other Port: Ningbo Or Shanghai

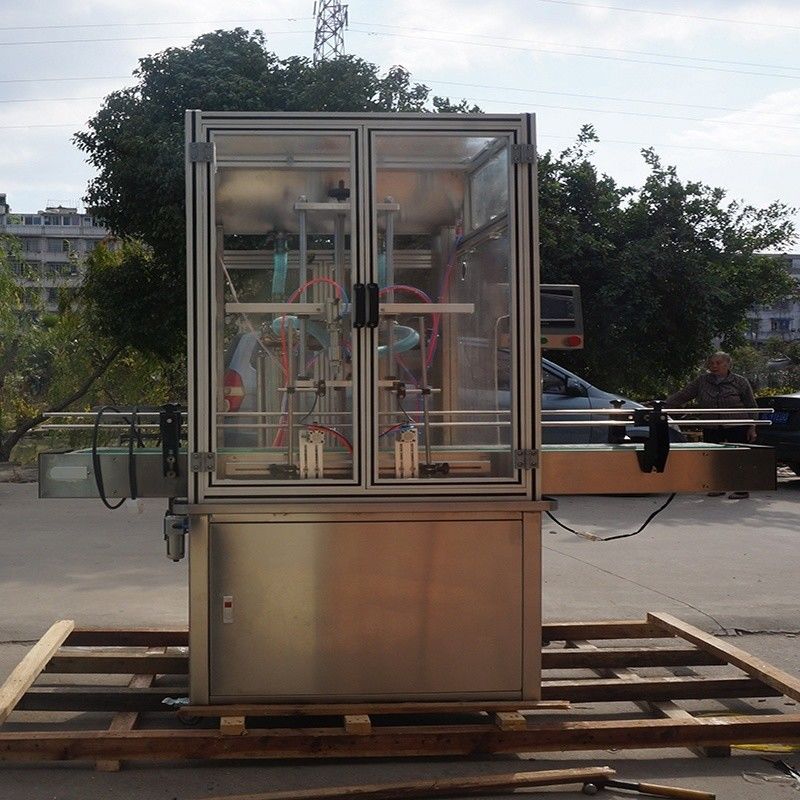

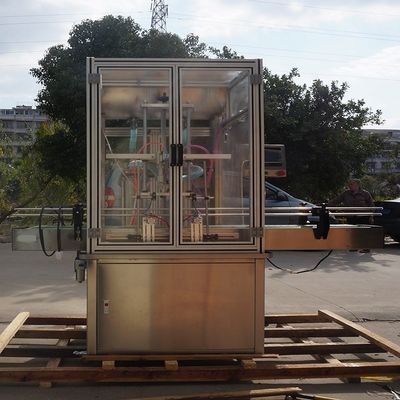

DUOQI YT2T-2G  2 filling nozzles Automatic pneumatic for soft drink beverage filling with dust cover



Filling samples:Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 0

Powe supply 220V 50HZ
Air pressure 0.6-0.8mpa
Filling speed 5-8bottles/min
Power 1000W
Filling heads 2 heads
Filling accuracy ≤±1%
Filling volumes range

10-100ml,25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml

Machine size 2100*860*1460mm



Description:

YT2T-2G is designed on the basis of this companys series products with extra functions increased. The product is simple and convenient in operation, error correction, machine cleaning and maintenance. Widely used for filling various kinds of highly viscous fluid in the industries of daily chemicals, foodstuffs, pharmaceutics and oil.



1.With two synchronous filling heads, quick and accurate filling possible



2.With Germany FESTO and Taiwans AirTac,SHAKO pneumatic elements and Taiwans electrical control parts adopted, its performance is stable.



3.The cylinders and pistons are made of 304L stainless steel and lined with PTFE, conforming to GMP.



4.Quality guaranteed by employing Korean AUTONICS photoelectric eyes, Taiwans PLC, touchable screen and frequency inverter, and Schneider Electric Co. electrical elements.



5.Compact design, attractive appearance, convenient installational and filling adjustment, no missed filling and accurate filling dosage with a counter provided.



6.Closure head preventing leakage and wire-drawing, filling elevating system preventing high froths, bottle top positioning system and liquid level control system provided.

Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 1Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 2Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 3Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 4

Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 5Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 6Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 7 Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 8Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 9Accurate and Precise Filling DUOQI YT2T-2G Processing Line 2 Filling Nozzles 220V 10

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.



Q2: Can you send products  to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.



Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.



Q4: What's your payment terms ?

A4:Offline, L/C ,T/T ,Western Union



Q5: How can I place the order?

A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay  balance. Finally we will ship the Goods.



Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
