Product Details:
|
| Condition: | New | Type: | Filling Machine |
|---|---|---|---|
| Machinery Capacity: | 200BPH | Applicable Industries: | Hotels, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops |
| Showroom Location: | None | Application: | Food, Beverage, Commodity, Chemical, Medical |
| Packaging Type: | CANS, Bottles, Stand-up Pouch, Bags | Packaging Material: | Plastic, Paper, Wood |
| Automatic Grade: | Semi-automatic | Driven Type: | Electric |
| Voltage: | 110V/220V | Dimension(L*W*H): | 1330*500*450mm |
| Weight: | 65 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Filling Material: | Milk, Water, Oil, Juice |
| Filling Accuracy: | ≤±1% | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Gear, Bearing | Product Name: | Thick Paste And Liquid Dual Use Filling Machine |
| Filling Range: | 5-100ml,10-200ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | Filling Speed: | According To The Material Characteristics And Filling Volume Set |
| Hopper Capacity: | 40L | Air Pressure: | 0.4-0.6Mpa |
| Keywords: | Paste Fillng Machine | Contact Part: | Stainless Steel 304 |

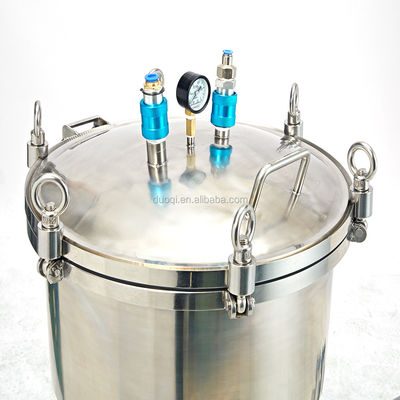

| Control: | Penumatic And Electric | Hopper: | With Air Pressure |
| Port: | Ningbo Or Shanghai |
DUOQI G1WGD thick paste pneumatic filling machine with air pressure hopper
| Model | G1WGD-Air pressure with single head |
| Power | 100W |
| Powersupply | 110/220v 50/60hz |
| Air Pressure | 0.4-0.6Mpa |
| Machine Material | SS304 & PTFE O-Rings |
| Filling Volume Range | 5-100ml,10-200ml,50-500ml,100-1000ml,500-2500ml,1000-5000ml |
| Filling Speed | 0-50Bottles/min |
| Filling accuracy | ≤±1% |
| Machine Size | 1330*500*450mmmm (Reference) |
| Machine Weight | 85Kg |
Description:
1.The machine is Electrical integration.It need work with power and air compressor.

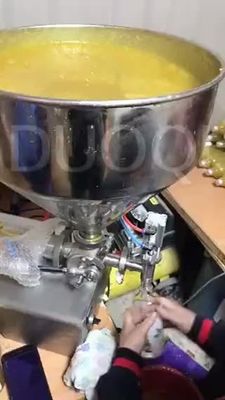

2.It have different filling range for the viscosity paste.Like honey,cream,gel,etc.It widely suit for pharmaceutical, chemical, food, cosmetics and other industries.

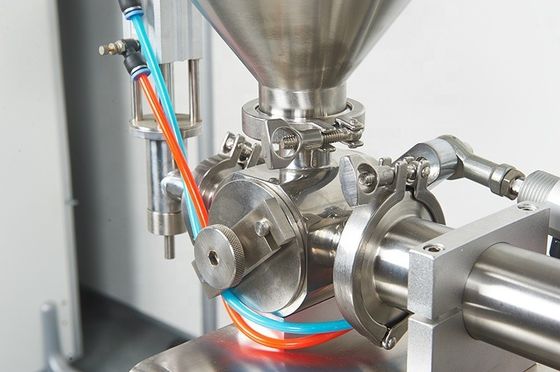

3.The machine adopt the stainless steel 304.The Filling head adopts anti-leakage.Filling volume and filling speed can be adjusted, and the precision is high.
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4:Offline, L/C ,T/T ,Western Union
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
